PRODUCT INFORMATION:

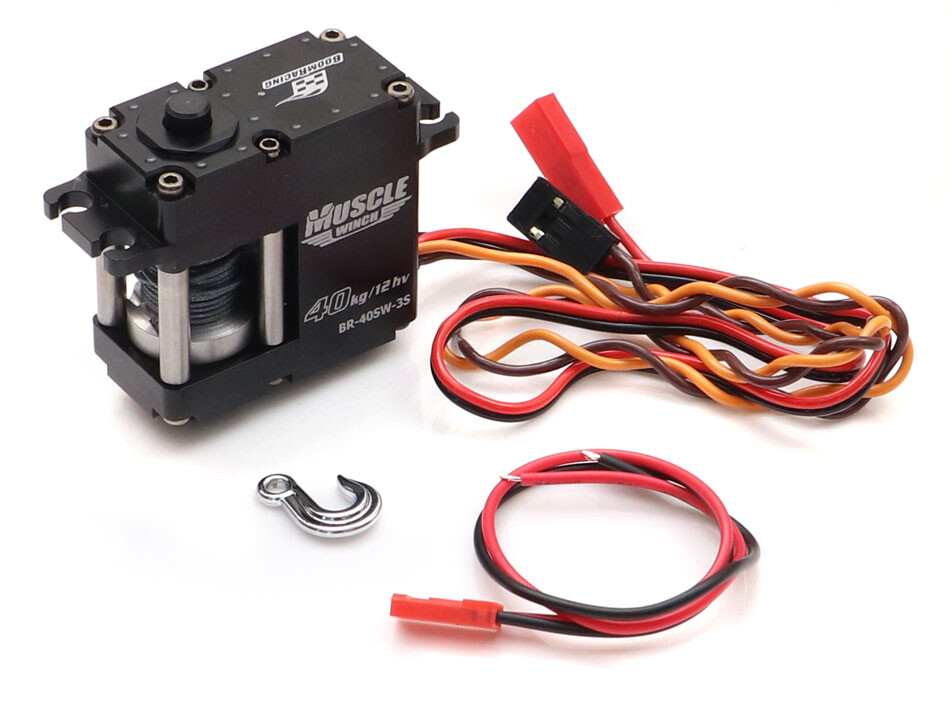

Boom

Racing's Muscle Winch™ is a dedicated and fully waterproofed internal

servo winch designed and engineered from the ground up, delivering

strong pulling power and reliable performance for any R/C builds.

Free Spool Unit

A

dual-trigger free-spool unit is integrated into the Muscle Winch™ for

quick winch release. There are two ways to trigger the free spool

mechanism; one by pressing the button on top of the servo winch, and the

other by pulling the knob on the bottom. This dual-trigger design makes

the free-spool unit accessible from both sides of the servo winch,

which is a major advantage when designing the layout of your servo winch

placement.

To release the rope, press the button on top

of the Muscle Winch™ or pull the knob from the bottom. This will

disengage the locking mechanism allowing you to pull the rope out. Once

you have reached the desired length, then release either the button or

knob and continue pulling on the rope until you hear a “click” sound.

The locking mechanism will re-engage and you are ready to winch.

The Muscle Winch can also be used without the free spool. You can use the radio to release the cable.

The

Muscle Winch™ operates at up to 12.6V which produces up to 40KG (555oz)

of torque and features a billet aluminum case and full metal gears for

strength and durability. A metal scale winch hook is included for the

icing on the cake!

Requires a spare channel with a three-position switch to control the winch.

Specification:

• Integrated Free Spool Unit
• Battery: 2-3S Lipo
• Operates at up to 12.6V
• Torque: 28kg/cm (389oz/in) @ 8.4V and 40kg/cm (555oz/in) @ 12V
• Operating Speed: 83RPM @ 8.4V and 118RPM @12V
• Fully Waterproof IP67
• Full metal case
• Full metal gears
• Metal hook included
• Nylon winch line 68kg (2 meters) included
• Size: 54mm x 46.5mm x 20mm
• Weight: 88.5g

Includes:

• Muscle Winch with Free Spool Unit
• Nylon winch line (2m)
• Metal Hook
• Decal sheet
• Instruction Manual
