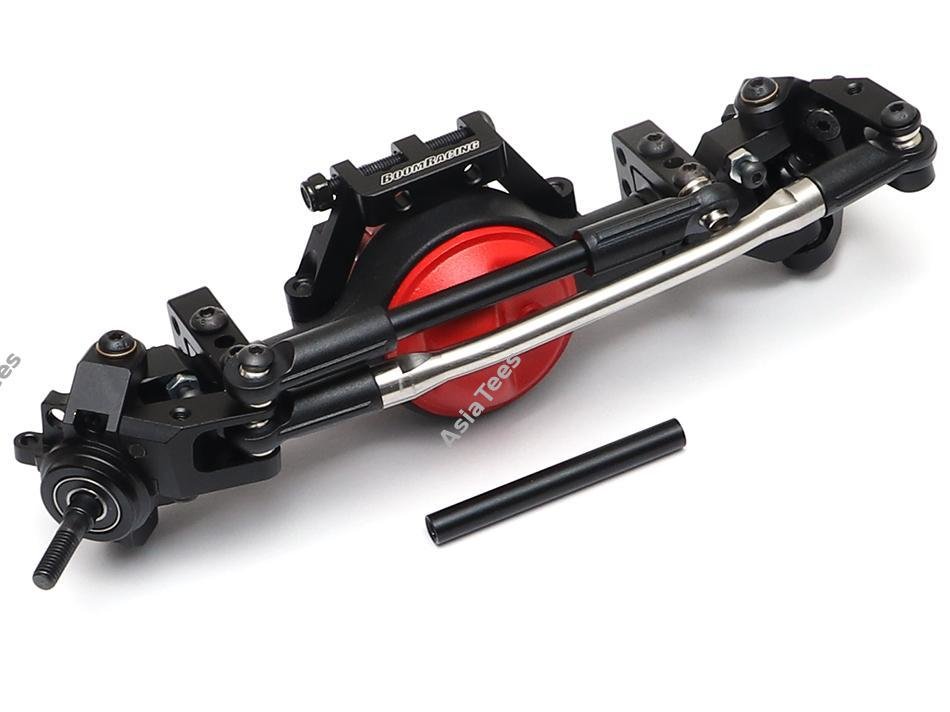

Boom Racing brings you a new and exciting product - Complete Assembled BRX70 Scale PHAT Axle Set.

The BRX70 axle is Boom Racing's new narrow axle. Packed with many desirable

solid axle features; heavy weight for low CG, reversible axle bevel

gear positions, leaf spring over and under axle (optional), chassis

mounted or axle mounted servo (optional), behind-the-axle steering

(optional), detachable aluminum CNC truss, adjustable caster angle. It

uses the widely available AR44 axle gear, input shaft and AR44 knuckles.

This is a performance based, heavy and narrow axle set designed for

performance based scale RC builds. Use this axle as a base for any

custom builds.

BRX70 front axle is slightly wider than the BRX70 rear axle. This provides better steering performance and stability for the chassis.

Size:

• 148.5mm pin-to-pin (5.846 inches)

Features:

• Narrow axle for super scale builds
• PHAT axle (heavy and strong)
• 260 grams total weight
• Reversible axle gear in the housing (swap gear to opposite side for counter rotation center drivetrain setup)
• Standard AR44 high pinion gear & input shaft
• High pinion axle setup for better clearance
• Chassis Mounted Servo (CMS) AND Axle Mounted Servo (AMS) setup option
• Detachable knuckle lever for Behind-The-Axle steering setup option
• Standard AR44 knuckle arms are compitable
• Leaf spring over and under the axle housing option
• CNC aluminum truss included for 3-Link and 4-Link setup option
• Adjustable caster angle for additional steering adjustability
• BADASS HD Steel universal shaft for ultimate durability and strength for the axle drivetrain
• High steering angle you won't believe its true - over 45 degrees
• Removeable third member for 6x6 pass-thru option (coming soon)
• Third member high pinion angle for better clearance
• Counter rotation stainless steel tie rod steering link for quick adjustments
• Option to lengthen the axle width with longer c-hubs and universal axle shafts (coming soon)

Includes:

• 1x PHAT Axle Houring
• 1x AR44 Heavy Duty Keyed Helical Bevel Gear & Input Shaft (30/8T) #BR955020
• 2x CNC aluminum knuckles (AR44 compitable)
• 2x CNC aluminum C-Hubs
• 2x BADASS Heavy Duty Steel Universal Driveshafts
• 1x CNC Aluminum Truss
• 1x 4mm Stainless Steel Tie Rod Steering Link
• 2x 4mm Aluminum Drag link Steeing Link
• 2x CNC Aluminum Link Mounts with multiple shock position options
• 2x CNC Aluminum 12mm Hex and Wheel Pins
• Full set of rubber sealed bearings set for BRX70 front axle
• Full set of BADASS Rod Ends w/ Stainless Steel Pivot Balls
• Hardware
