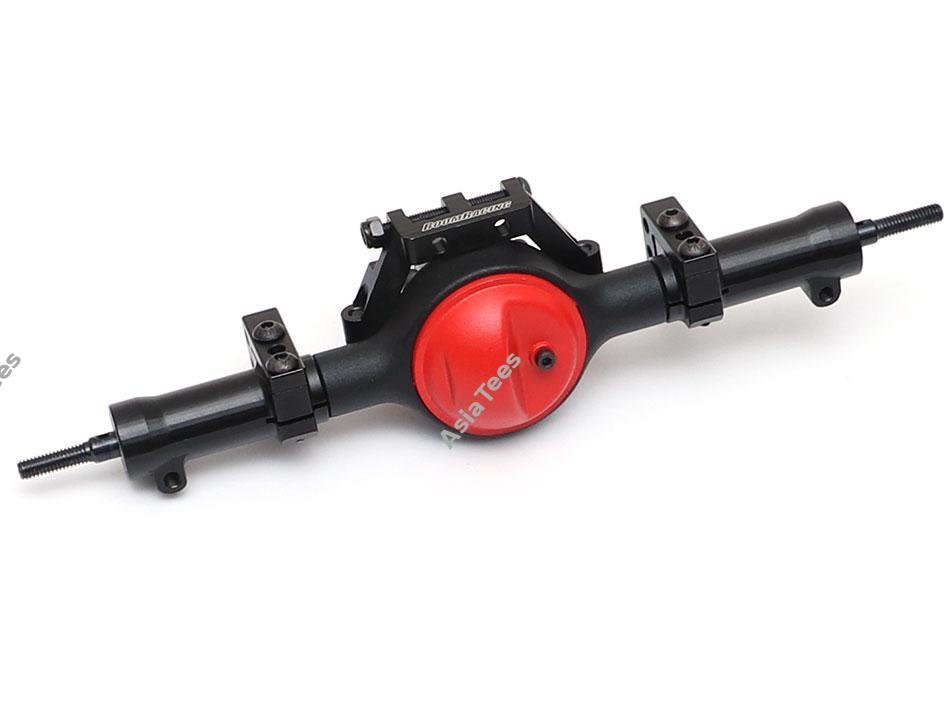

The BRX70 axle is Boom Racing's new narrow axle. Packed with many desirable solid axle

features; heavy weight for low CG, reversible axle bevel gear positions,

leaf spring option (over and under axle), detachable aluminum CNC

truss, adjustable caster angle. It uses the widely available AR44 axle

gear and input shaft.

This is a performance based, heavy and narrow axle set designed for performance based scale RC builds. Use this axle as a base for any custom builds.

BRX70 rear axle is slightly narrower than the BRX70 front axle.

Size:

• 146mm pin-to-pin (5.748 inches)

Features:

• Narrow axle for super scale builds
• PHAT axle (heavy and strong)
• 198 grams total weight
• Reversible axle gear in the housing (swap gear to opposite side for counter rotation center drivetrain setup)
• Standard AR44 high pinion gear & input shaft
• Leaf spring over and under the axle housing option
• CNC aluminum truss included for linked setup (remove truss for leaf spring option for ultimate scale look)
• BADASS HD Steel rear shaft for ultimate durability and strength for the axle drivetrain
• Removeable third member
• Third member high pinion angle for higher clearance

Includes:

• 1x PHAT Axle Houring
• 1x AR44 Heavy Duty Keyed Helical Bevel Gear & Input Shaft (30/8T) #BR955020
• 2x CNC aluminum lockout
• 2x BADASS Heavy Duty Steel Rear Shaft
• 1x CNC Aluminum Truss
• 2x CNC Aluminum Link Mount
• 2x CNC Aluminum 12mm Hex and Wheel Pins
• Full set of rubber sealed bearings set for BRX70 rear axle
• Hardware

When you receive the axle:

Make sure to grease up the axle

set. You can fill up the empty space with diff grease surrounding the

bevel gear and input shaft.

The gear positions are factory setup and should be ready to go. Rotate the drivetrain by hand for physical inspection.

Install spacers accordingly between the center driveshaft and the input shaft to prevent input shaft from unnecessary slop.
