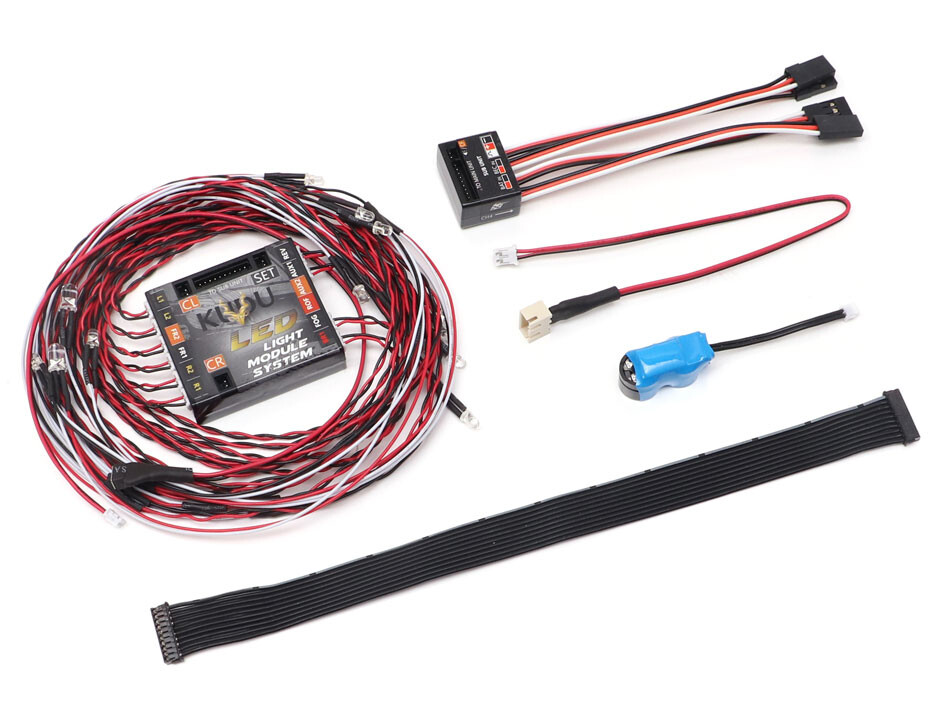

This is a complete LED light system for the Boom Racing BRX02 Land Rover Series III. This set includes a main LED light unit, a sub unit, a main connecting cable connecting the main and sub units, a set switch cable, a battery cable (2s), a buzzer (for reverse and low voltage detection), 10 LED light cables, and a user manual.

The module has a default setting already installed. This is a highly adjustable LED light system, different lighting options can be accessed through the setup mode.

Features:

• Low-voltage detection capability
• Includes one high-voltage module plug rated 7.4v-12.6v (e.g. for roof light)
• Six high-power light plugs (up to 16 LEDs each) with power settings
• Blinkers can be turned on and off, or use a toggle switch to operate
• Brake light includes standard, drag, and crawler modes
• Blinker and Hazard mode settings with flash rate options
• Reverse beeper included
• Ten flash mode toggle switch options
• Auto hazard start time setting
• Channel 2 and 4 polarity setup

Included LED Lights:

• 4x Left & Right - 3mm Yellow (1x parallel)
• 1x Front 1 - 5mm Warm White (2x parallel)
• 1x Front 2 - 3mm Warm White (2x parallel)
• 1x Reverse - 3mm Warm White (2x parallel)
• 1x License Plate - 3mm Warm White (2x parallel)
• 1x Brake - 3mm Red (2x parallel)
• 1x Fog - 3mm Red (2x parallel)

Specifications:

• Input Voltage: 5-7.4V (powered by BEC)
• Battery Type for Low Voltage Detection: LiPo 2S (user define max 12.6V)
• Size (LxWxH):
  • Main Unit: 45x41.3x11.7mm
  • Sub Unit: 24.5x18.5x12mm
• Weight:
  • Main Unit: 14g
  • Sub Unit: 10g
