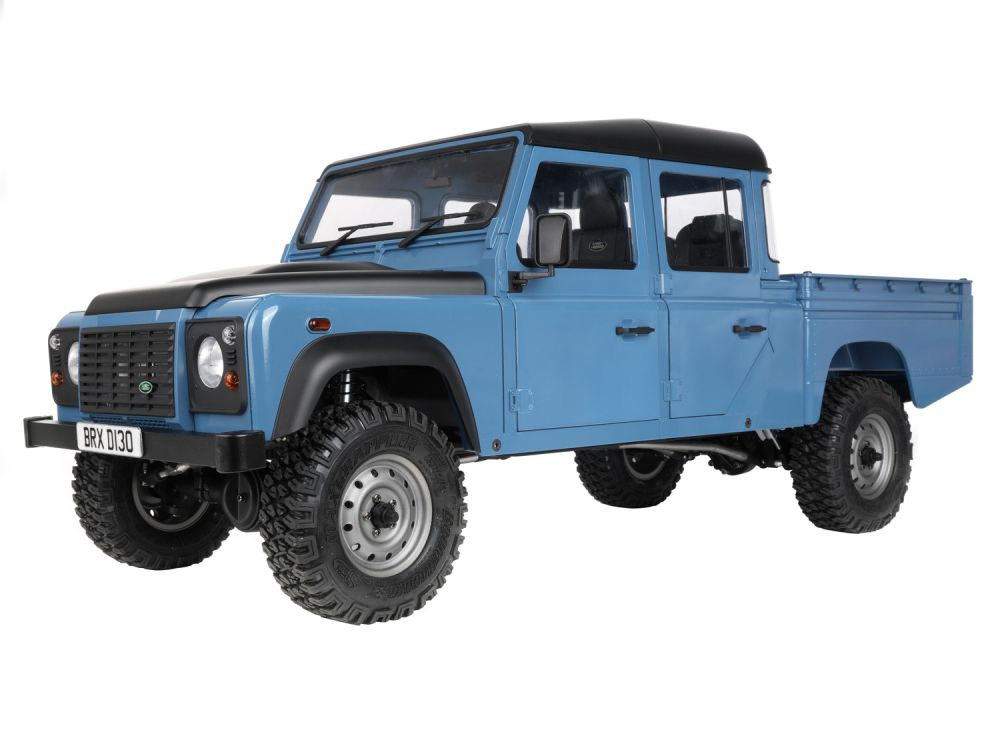

Officially Licensed BRX02 Land Rover® Defender 130 HCPU 1/10 Scale 4WD RC Kit

Each Kit Includes:

+ Exclusive Land Rover® Defender 130 1/10 Scale Chassis Badge engraved with your unique chassis serial number.

+ Lucky Dawgs™ 1/10 Scale Companion Figure – 2nd Edition.

+ Custom period-correct British front and rear license plates matched to your vehicle

Officially Licensed BRX02 Land Rover® Defender 130 HCPU 1/10 Scale 4WD RC Kit

Where Heritage Meets Performance

The Land Rover® Defender 130 High Capacity Pickup is one of the most iconic utility vehicles ever built. Originally designed to carry heavy loads into the world's most demanding environments, it earned a reputation for durability, versatility, and unmistakable character.

Boom Racing brings this legendary utility vehicle to life in highly detailed 1/10 scale form, capturing the character of the original Defender 130 while integrating the advanced engineering, capability, and trail performance that define the BRX platform.

Built on the Proven BRX02 Platform

Stretching the proven BRX02 platform to an extended 385mm (15.16") wheelbase, the Defender 130 combines authentic scale realism with modern RC engineering. Every aspect of the vehicle has been engineered to capture the presence, proportions, and functional character of the full-size Defender while delivering the durability, control, and trail capability that define a premium scale crawler.

Power is delivered through the compact BCF2™ 2-Speed Transmission, allowing drivers to switch between low-speed technical crawling and higher-speed trail driving. The innovative SWD™ Selectable 2WD / 4WD Transfer Case provides additional realism and versatility, letting drivers choose between rear-wheel drive and four-wheel drive on demand.

To operate the Hi-Lo gears and 2WD / 4WD mechanisms, the Defender 130 includes two all-new waterproof PYTHON™ 125Mini shift servos, providing reliable and precise operation of both the transmission and SWD™ Selectable 2WD / 4WD transfer case.

The Defender 130 rides on BRX90 PHAT™ Axles equipped with heavy-duty AR44-style helical-cut differential gears for smooth, efficient power delivery and exceptional durability. Counter-rotating rear axle gears help neutralize drivetrain torque, improving stability and reducing torque twist on technical climbs.

Complementing the drivetrain is a realistic linked suspension system, precision-machined aluminum components, a robust steel driveline, and advanced transmission technology developed specifically for demanding scale trail driving.

Purpose-Built Suspension System

The BRX02 130 features an all-new KUDU™ rear suspension system that combines separate coil springs and shock absorbers for realistic scale appearance and controlled suspension performance.

At the rear, 70mm KUDU™ shock absorbers work alongside separate coil springs, replicating the suspension layout found on many full-size vehicles. Both medium and hard spring sets are included, allowing builders to fine-tune the suspension for their preferred driving style and terrain.

Up front, 90mm KUDU™ scale coilover shocks provide precise handling and excellent articulation. Together, the suspension system offers outstanding stability and confidence across challenging terrain.

Trail Performance

The extended wheelbase provides excellent stability on steep climbs, descents, and particularly on sidehills and uneven surfaces. Despite its size, the BRX90 PHAT™ axles provide a generous steering angle that helps maintain excellent maneuverability on tight trails.

A new extended high-clearance aluminum center skid plate, combined with high-clearance suspension links, improves breakover clearance and helps the chassis slide over obstacles with fewer hang-ups. The result is a truck that feels planted on sidehills, stable on climbs, and remarkably agile for a vehicle of its size.

Authentic Defender 130 Details

The officially licensed hard body captures the distinctive character of the Defender 130 High Capacity Pickup with an extensive collection of scale details inspired by the full-size vehicle.

The all-new Defender 130 body features a highly detailed four-door crew cab with opening doors, opening bonnet, opening tailgate, a fully detailed interior, clear windows, and numerous scale features developed specifically for this project.

From the functional cargo bed and detailed interior to the authentic exterior accessories and scale-correct proportions, every component has been carefully engineered to recreate the unmistakable presence of the Defender 130 High Capacity Pickup, resulting in one of the most detailed and realistic Defender models ever offered by Boom Racing.

What you'll love about the Defender 130

• Officially Licensed Land Rover® Defender 130 High Capacity Pickup Hard Body
• 385mm Long-Wheelbase BRX02 Platform - exceptional stability with a unique driving experience
• BCF2™ Compact 2-Speed Transmission - dependable, on-the-fly shifting
• SWD™ Selectable 2WD / 4WD Transfer Case - efficient 2WD for easier trails, with instant 4WD when conditions get demanding
• KUDU™ 70mm Rear Scale Shock & Coil Spring Suspension System - realistic Defender-inspired suspension performance
• Two Waterproof PYTHON™ 125Mini Shift Servos - premium mini servos included
• Pro Spec Upgrade Set - take your Defender 130 to the next level
• Unique VIN, Defender 130 Chassis Badge & License Plate Registration System - uniquely yours
• True Scale Compatibility - perfectly proportioned alongside other Boom Racing vehicles, including the Series Land Rover, Defender D110, and D110 6x6

Body Features:

• Highly Detailed Injection Molded Hard Body
• Four-Door Crew Cab Configuration
• Authentic Defender 130 HCPU Proportions
• Detailed Interior with Dashboard, Seats, and Steering Wheel
• Clear Windows Throughout
• Opening Bonnet, Front Doors, Rear Doors, and Tailgate
• Robust Door Latching System
• Detailed Pickup Cargo Bed
• Scale Exterior Door Handles
• Scale-Correct Front Light Bezels
• Scale-Correct Rubber Side Mirrors
• Detailed Front Grille and Lighting Assembly
• Front Fender Vent Details
• Molded Front Fender Flares
• Metal Rear Step/Bumper
• Scale Windshield Wipers
• Licensed Land Rover® Badging
• Durable Multi-Piece Body Construction
• Hidden Quick-Release Body Mounting System
• Aluminum Door Hinge for Land Rover® Hard Bodies

Chassis Features:

• BRX02 130 Linked Chassis Platform
• Shaft-Driven Drivetrain with Selectable 2WD / 4WD Operation
• Realistic Chassis-Mounted Servo Steering
• BCF2™ Compact 2-Speed Transmission
• SWD™ Selectable 2WD / 4WD Transfer Case (overdrive ready)
• Realistic 6mm Aluminum Ladder Frame Chassis
• Highly-Configurable BRX90 PHAT™ Axles
• Heavy-Duty Helical-Cut Keyed Differential Gears with Counter-Rotating Rear Drivetrain
• KUDU™ Front 90mm Scale Coilover Shocks
• KUDU™ Rear 70mm Scale Shock Absorber with Coil Spring Suspension System
• KUDU™ Heavy-Duty Steel Drivelines
• Aluminum Front Bumper with Rubber End Caps
• Aluminum Rear Bumper
• Full Stainless Steel Links with High-Clearance Rear Lower Links
• MAXGRAPPLER™ 1.9" BLACK Gekko Scale Tires 3.82"x1.26" (97x32mm)
• Premium Hardware

Chassis Specifications:

• Wheelbase: 385mm / 15.16"
• Length: 576.5mm / 22.69"
• Width: 218.5mm / 8.60"
• Height: 145.6mm / 5.73"
• Track Width: 186mm / 7.32"
• Approach Angle: 55.3 deg
• Departure Angle: 38 deg
• Breakover Angle: 37 deg
• Ground Clearance: 62mm / 2.44"
• Front Shock Length: 90mm
• Rear Shock Absorber Length: 70mm
• Coil Spring Length: 40mm

New Chassis Components:

• SWD™ Selectable 2WD / 4WD Transfer Case
• High-Efficiency Output Shaft
• Extended High-Clearance Aluminum Skid Plate
• Complete Stainless Steel Links
• High-Clearance Stainless Steel Rear Lower Links
• Stainless Steel Motor Mount
• Reinforced Steel Front Lower Shock Mounts
• Stainless Steel Rear Link Mounts
• KUDU™ Rear Coil Spring Suspension System
• Reinforced Aluminum Front Bumper with Rubber End Caps
• PYTHON™ 125Mini Aluminum Waterproof HV (8.4V) Digital Servos for Transmission and T-Case (2)
• WOLF 1.9" Heavy-Duty Steel Beadlock Wheels
• Rock Monster™ 1.9" BLUE Foam Inserts (4) 88x27mm / 3.46"x1.06"

Included PYTHON™ Shift Servos:

The BRX02 130 includes two all-new Boom Racing PYTHON™ 125MINI waterproof HV digital servos.

Specifications:

• Operating Voltage: 4.8V – 8.4V
• Motor Type: Coreless
• Digital Amplifier
• Full Metal Gear Set
• 25T Standard Output Spline
• Dead Band: 2μs
• Operating Temperature: -20°C to +60°C
• Dimensions: 30.3 × 29.9 × 12.8mm
• Weight: 23.3g
• 350mm JR Connector Lead

Features:

• Full aluminum construction
• Waterproof IP67 standard
• Compact mini servo design
• Direct fit to all BRX vehicles (except BRX02 88 requires new mount TBA)
• Up to 125 oz-in (9.0 kg-cm) torque at 8.4V
• Fast 0.07 sec / 60° response at 8.4V

Performance:

• @8.4V 0.07 sec / 60° 125 oz-in (9.0 kg-cm)
• @7.4V 0.08 sec / 60° 111 oz-in (8.0 kg-cm)
• @6.0V 0.09 sec / 60° 97 oz-in (7.0 kg-cm)
• @4.8V 0.10 sec / 60° 78 oz-in (5.6 kg-cm)

Waterproof Ready

Designed for wet weather adventures, the BRX02 130 is ready for water crossings, muddy trails, and harsh outdoor conditions.

The receiver box is sealed with rubber gaskets to help protect your receiver from water ingress. The kit also includes two PYTHON™ 125Mini waterproof high-voltage aluminum servos, rated IP67, for reliable operation of the 2-speed transmission and selectable transfer case.

To help withstand harsh environments, the axle gears come pre-greased, with additional silicone and black graphite grease included for maintenance and long-term protection against water and corrosion. Stainless steel pivot balls are also included for improved durability and smoother performance in wet conditions.

Simply add your preferred waterproof ESC and steering servo, and the BRX02 130 is ready for water crossings, muddy trails, and year-round outdoor adventures.

Equipment Required:

• Radio (Transmitter and Receiver)
• Steering Servo
• Motor & ESC
• Tools
• Battery - maximum size 95x47x28mm
• Charger

Note: Photos shown are for reference only. Kit requires assembly and comes unpainted.

License Plates, VIN Numbers & Registration

Every BRX kit includes a unique pair of classic UK-style license plates matched to a corresponding chassis VIN number. No two vehicles are the same, giving every BRX its own identity from day one and allowing its history to be documented throughout its lifetime.

Register Your Vehicle

Your license plate number and VIN can be registered on the Boom Racing website to activate ownership and unlock vehicle-specific benefits.

Scaletra Integration

Boom Racing has partnered with Scaletra Adventure, a GPS-based scale trail app for iOS and Android. Track trail runs, log adventures, and build a permanent digital history for your vehicle. Your BRX can be registered directly within the app, with vehicle information and activity data synchronized to your Boom Racing account.

Ownership Benefits

Registered owners receive important updates throughout the life of their vehicle, including maintenance advisories, product recalls, promotional offers, priority pre-order opportunities, and exclusive giveaways. In the past, we've even provided complimentary maintenance parts to registered owners to help keep their trucks performing at their best.

Vehicle History

Once registered, a permanent vehicle history record is created. Trail logs, ownership records, and vehicle information are preserved over time, allowing future owners to view the history of pre-owned vehicles. Ownership can be transferred directly through the Boom Racing website, helping maintain the provenance and story of every BRX vehicle throughout its lifetime.

The Defender Spirit

Whether displayed on the shelf or tackling demanding trails, the BRX02 Defender 130 HCPU captures the spirit of the original vehicle while delivering the engineering, durability, and trail capability that define every Boom Racing chassis.

Honoring Land Rover's heritage while embracing the innovation and performance of the modern BRX platform, it remains a true Defender at heart, built for adventure.
