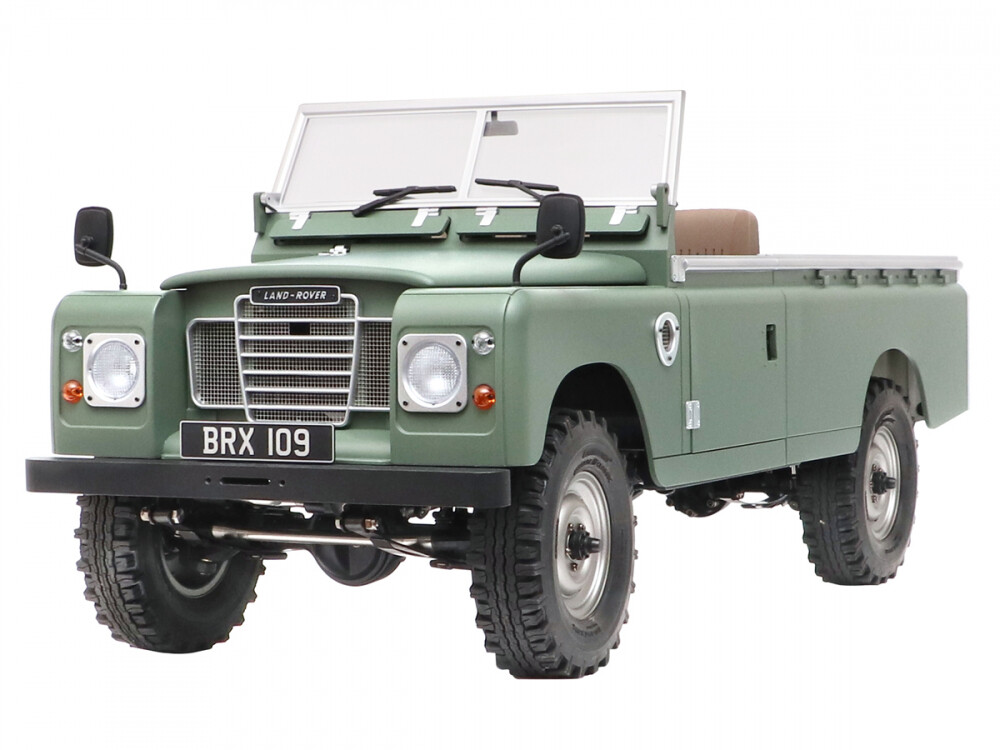

This is the officially licensed Boom Racing BRX02™ Land Rover® Series III 109 Pickup 1/10 4WD radio control car kit.
Commonly referred to as Series Land Rovers, it is arguably one of the world’s
most iconic vehicles ever made. Produced from 1971 to 1985, the Land
Rover Series III is unshowy, unpretentious, and classless; it is the car
that you can arrive with at the Buckingham Palace, a rural farm, or an
inner-city estate.
The Series Land Rover survived decades largely
unchanged, serving farmers and foresters, construction and utility
companies, explorers and scientists, armies and airforces – in fact,
everyone who needed a good, honest vehicle that would do a good, honest
job anywhere in the world. It was a beacon of safety and security too.
It was favored by the military, the police, the fire service, NGOs, the
UN, the Royal Palace, the Special Forces, and explorers alike. This
iconic workhorse discovered new regions, won wars, and saved lives.
Regress
to a simpler, classier time, and experience the ageless charm of this
iconic vehicle. We’ve carefully studied the vehicle extensively and
spent over a year designing and producing this scaled-down model kit.
After years of waiting for such a model, the Boom Racing Land Rover
Series III 109 radio control car kit has finally arrived.
What is the BRX02 109?
The
Boom Racing Land Rover Series III project began with the BRX02 Leaf
chassis as a starting platform with a 334mm wheelbase. We’ve made
multiple changes to retrofit this new classic body.
These changes
include using the slightly narrower BRX80 Scale PHAT™ axles, a new B2X™
anti-torque twist aluminum transfer case that is identical to the
original BRX02 transfer case but has the additional feature of being
overdrive ready. New 6mm aluminum frame rails for superior strength,
chassis rigidity and predictable handling. A new stainless steel ESC
mounting plate next to the front motor replaces the carbon fiber ESC
plate at the rear end of the BRX02 Leaf chassis.
To re-create the
original Series III appearance, the body sits slightly lower with 80mm
KUDU™ scale shock dampers, and the front and rear bumpers were changed
to the Series III design. The front bumper includes space for a
fairlead, and the rear bumper includes left and right-side crossmember
grab handles. The front and rear skid plate sliders are designed with
maximum ground clearance in mind and molded in nylon for added strength
and to keep the CG lower.
One of the main challenges in designing
this scaled-down Series III was to keep the wheels tucked inside the
body at all times while having good steering ability with a full leaf
spring setup. This was achieved by using the BRX80 Scale PHAT™ axles,
plus an all-new XT502-Pin pin wheel hub that is narrower than the XT500
pin hub.
The other challenge was to figure out a way to relocate
the steering servo. Series IIIs had quite a significant recessed grill
which interfered with the way the BRX02 Leaf chassis is set up. We
designed a new servo mount and moved the servo under the motor, and by
flipping the BCF2™ transmission motor mount upside down we created
enough space for the servo and added a good amount of suspension travel.
The
chassis is fitted with our new SLR™ 1.9” steelie beadlock wheels that
come with scale wheel caps with a tool included for easy installation,
as well as new scale screws that were specifically designed for these
wheels, with a tool included. The wheels are paired with a set of
Mileage Classic™ 1.9” scale tires in Gekko™ Black (super soft) compound.
This soft and tacky rubber is our proprietary compound which is used in
many of our tires and is formulated for crawler performance and
durability in rough terrains.
With all the above updates, we’ve given the chassis its own new identity – the BRX02 109.
The original BRX02 concept
The
BRX02 is our top-of-the-line scale performance off-road chassis. It is
the result of continuous development and improvement of the highly-rated
BRX01, developed in close collaboration with many scale hobbyists
around the world. You can expect to build an ultra-realistic R/C model
vehicle that gives you great performance straight out of the box.
It
shares the same drivetrain with the BRX01 – a top-quality robust
driving system that has made a name for itself in the industry for being
durable and efficient. At its core is the small footprint BCF2™
transmission with 2-speed, hi-lo remote shifting ability. The transfer
case sits on a high-clearance skid plate that lifts the belly up for
fewer overhangs.
The BADASS™ heavy-duty front and rear steel axle
shafts and KUDU™ center CVD driveshafts are durable, smooth, and
capable of high articulation angles. KUDU™ driveshafts are rebuildable
and have become the standard for all future Boom Racing vehicles. The
BRX80 Scale PHAT™ axles use our proprietary AR44 heavy-duty steel
triangular keyed bevel helical cut 30/8T diff gears, with the same but
reversed cut gears in the rear axle to cancel out almost all of the
torque twist from the drivetrain.
The leaf spring suspension with
KUDU™ 80mm scale shocks gives a realistic ride height to the Series
III. Optimized for scale performance, it features a billet aluminum
cylinder body for durability, steel shock shaft with titanium nitride
coating, plastic pivot retainers (replaceable) for smoother swivel
movements, high degree pivot angle for high-angle articulation, double
X-Ring oil seals, and comes with cylinder and friction seals to prevent
leaks and contaminants from entering. The bump stop provides an
additional level of bottoming control, stainless steel pivot balls for
stainless, corrosion-resisting pivot rotation, and an aluminum pivot
ball tool included for hassle-free maintenance.
The leaf spring
unit has a master leaf with three graduated leaves for suspension
stability and adjustability. You may use up to four leaves for adjusting
the rebound rate. Anti-wrap bars attached to the front and rear axles
prevent axle twists, and realistic shackle bolts are included for the
scale realism factor.
The chassis is ready for an internal servo
winch by installing the optional winch mount kit [BRD90110036]. A JX
waterproof metal gear mini servo for remote 2-speed shifting is
included.
All hardware included is 12.9-grade alloy steel nickel plated screws, and rubber ball bearings are included.
The Land Rover body
Our
interest and passion in Land Rover began many years ago. We
meticulously studied the original designs of this classic iconic
off-road vehicle, and our designs were inspected for accuracy and
approved by Land Rover in multistage.
This is a full hard body
molded with ABS plastics. We constructed the body using the same design
concept as how they were built in the factories back in the day; using
multiple body panels to build the complete body.
You have the
option to build both the hardtop and the convertible. The parts are all
included. We leave the difficult part for you to choose which one to
build. The windscreen can be folded down just like the 1:1, and the
bulkhead vent flaps can flip open and stay in place when the cabin gets
too hot ;) The hood, doors, and tailgate are all hinged and can open and
shut. The engine air intake has both right and left openings; you can
choose to build a diesel or gasoline engine Series III by picking the
wing panel with the intake.
The body includes a fully molded ABS
plastic interior, complete with a dash, floor panel, adjustable seats
for different figure sizes, gear stick, hi/low stick, 2WD/4WD stick,
handbrake, pedals, clear windows, wipers, door handles.
Rubber
side mirrors are provided for durability and can be mounted in two
different positions; you can choose the mirror position by the model
year of the truck. The mirror plates and light buckets are molded chrome
plastics.
The body includes a stainless steel front radiator wire grill for a realistic scale appearance.
It
comes with complete LED light buckets (ready for 13 LEDs); two main
headlights, two front side lights, two front amber signal lights, two
rear stop lights, two rear amber signal lights, one reverse light, one
rear fog light, and one license plate light. An optional KUDU™ LED light
kit (est. mid-May 2023) and dash light kit (est. mid-July 2023) will be
available in the future.
A key with the classic Land Rover emblem is included for the door opening.
The body comes complete with scale screws (tools included), a decal sheet, and instruction manual.
License Plates / VIN Numbers and how it works
All
BRX02 109 kits come with a pair of unique classic UK license plates
that are numbered with matching chassis numbers, on a
first-come-first-served basis. All BRX vehicles have VIN numbers. This
unique pair of car numbers and VIN numbers can be used to register the
vehicle on the Boom Racing website. Any future events such as recalls,
maintenance-related issues, and promotional offers including priority
pre-orders and giveaways will be notified if registered. For example, we
have sent out free maintenance items to registered owners to keep their
trucks running smoothly.
Once registered, vehicle logs will be
kept. New vehicle owners will be able to view the histories of their
pre-owned vehicles. Vehicle ownership can be transferred from the
registered owner to the new owner directly on our website.
What's new on the BRX02 109 chassis:
Additional BRX02 109 Chassis Features:
BRX02 109 Specifications:
Body Features:
Mini Servo Specifications:
All pre-orders get a set of Land Rover® Series deluxe bonnet w/ spare wheel and tire.
Includes:
