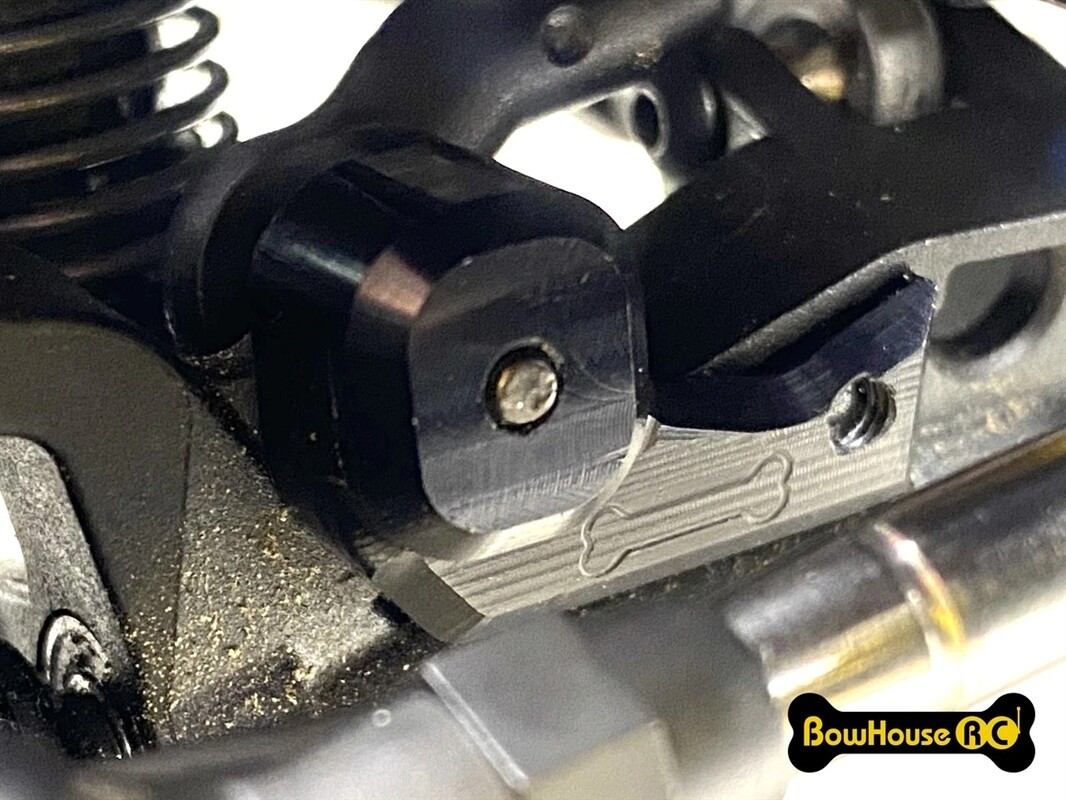

There's lots to like about the new Axial SCX10 III, but the Panhard mount on the stock AR45 portal axle housing could use a little help. We've designed our Panhard reinforcement bracket to bolt right onto the stock housing with no modifications, making installation a snap. And it's made of CNC machined aluminum to withstand whatever you can throw at it out on the rocks and trails.

Package includes:

• Panhard reinforcement bracket
• 1x M3 x 8mm flat head screw
• 1x M3 x 20mm flat head screw

Installation notes:

• Start by removing right front tire. Then remove screw securing right front shock and lower link to the axle housing.
• Unscrew panhard mount from axle housing.
• Snap panhard reinforcement bracket onto front of axle housing around existing panhard mount so that secondary screw hole is visible through the hole in the axle housing truss.
• Use M3 x 8mm flat head screw to secure bracket to axle housing through hole in axle housing truss (thread lock recommended).
• Use M3 x 20mm flat head screw to attach panhard to axle (do NOT use thread lock). Make sure that screw threads all the way into panhard reinforcement bracket.
