– The World’s First Outrunner Brushless Motor with Integrated ESC for REDCAT ASCENT-18

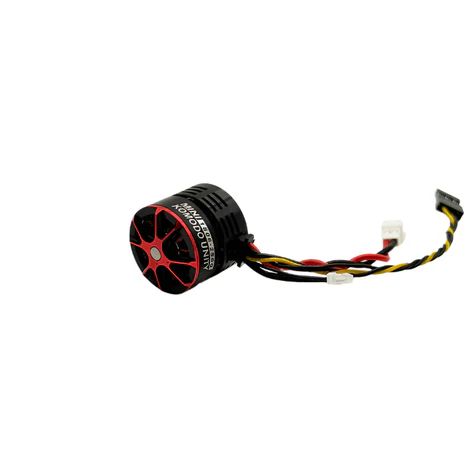

Furitek is proud to unveil the FURITEK MINI KOMODO UNITY, the world’s first-ever brushless outrunner motor with a fully integrated FOC ESC inside. This groundbreaking 2-in-1 power system is specifically engineered for 1/18 scale RC crawlers such as the REDCAT ASCENT-18. The UNITY sets a new benchmark in performance, cleanliness, and simplicity — all in an ultra-compact design.

🔧 Redefining Compact Power for Mini Crawlers

As pioneers of FOC technology in micro RC crawling, Furitek takes innovation to the next level. By embedding the ESC directly inside the legendary Mini Komodo outrunner motor, the UNITY eliminates external ESC wiring, reduces clutter, and gives you a super clean, ultra-efficient setup that’s lighter, cooler, and easier to install.

⚡ What Makes the UNITY System Revolutionary?

🧠 Integrated FOC ESC Inside the Motor

This is not an external combo — the ESC is seamlessly built into the rear of the motor itself.

🔄 High-Performance Outrunner Motor

Delivers incredible torque and ultra-smooth throttle response at the lowest speeds.

🧵 Cleanest Wiring Setup Ever

No more bulky ESC wires — maximum space efficiency and unbeatable cable management.

🔌 True Plug-and-Play

Drop it straight into your REDCAT ASCENT-18 or other compatible 1/18-scale crawler with zero hassle.

📱 Wireless Configuration via Furicar App

Tune live and update firmware directly on Android/iOS — no separate programming module required.

🔇 Signature Komodo Smoothness — Now with Built-in Intelligence

Enjoy the same buttery throttle feel the Mini Komodo is known for — now smarter, more compact, and fully integrated.

🔧 Key Features

🧵 Clear and Clean Build

The integrated ESC-in-motor design allows for a remarkably clean and minimalistic setup. By eliminating external ESC units and messy wiring, it frees up chassis space, improves airflow, reduces weight, and simplifies installation — perfect for scale realism and competitive REDCAT ASCENT-18 builds.

⚙️ Advanced FOC Technology

Field-Oriented Control (FOC) technology ensures ultra-smooth throttle response and intelligent power delivery across all speeds. It improves efficiency, enhances control, reduces heat, and extends the durability of your system — perfect for technical crawling or trail runs.

🔋 Integrated 5A BEC

Equipped with a robust 5A BEC, the system can power high-torque servos with ease. Voltage is selectable between 5.5V and 7.4V, giving you flexibility for various REDCAT ASCENT-18 setups, whether you’re running stock or high-performance servo upgrades.

🔌 2S–3S Battery Compatibility

Supports both 2S and 3S LiPo batteries to give you the freedom to choose between longer runtimes or stronger punch and torque. The system maintains stable output and consistent performance regardless of terrain or load.

📱 Furicar App Integration

The Furicar mobile app (Android & iOS) provides real-time telemetry, live tuning, and intuitive programming — right from your phone. Adjust throttle curves, BEC voltage, braking, startup behavior, and more from the trail or workbench.

🔄 Free Lifetime Firmware Updates

Stay ahead with free firmware updates, ensuring you always have the latest improvements in startup smoothness, throttle logic, and efficiency. Upgrades are easy to apply wirelessly via the app.

📐 Ultra-Compact Size

Just Ø23 × 21.3 mm (Ø0.91 x 0.84 inch), the UNITY fits tight REDCAT ASCENT-18 chassis builds with ease.

⚖️ Lightweight Design

At only 25.1g (0.88 oz), it keeps your crawler nimble, efficient, and balanced — especially important in high-precision terrain navigation.

⚙️ Motor Specifications

• KV Rating: 2500KV – Optimized for torque and smooth throttle response in micro crawler platforms.
• Maximum Power Output: 160W – Delivers strong and reliable performance in compact scale builds.
• Battery Compatibility: Supports 2S–3S LiPo for versatile power setups

⚡️ ESC Specifications

• Continuous Current: 30A – Stable output for demanding crawls.
• Burst Current: Up to 50A – Handles sudden load spikes with ease.
• Battery Support: 2S–3S LiPo – Flexible voltage range for performance tuning.
• Built-in BEC: 5A with selectable 5.5V / 7.4V – Powers high-torque servos without external units.
• Smart Programming: Fully adjustable via the Furicar mobile app for effortless tuning and updates on the go.

📦 Package Includes

• 1x Furitek MINI KOMODO UNITY 2-in-1 ESC/MOTOR with 12T CNC Steel Pinion
• 1x Furitek wireless module
• 1x JST adapter cable
• 1x User Manual
