Applicable models: model cars/boats/tanks, etc.
Spread spectrum method: FHSS
Modulation mode: GFSK
Response speed: PWM: ≤20MS
Net weight: 190g
Frequency range: 2.4GHZ ISM
Remote control distance: about 300M from the ground
Receiving sensitivity: -96 dbm
Transmitting power: ≈160MA-300MA
Receiver power supply: DC 3.5V-9V
Transmitter channels: 10
Transmitter power supply: DC 3.7V-9V
Receiver channels: 8
Standard receiver: F-08A

Features

1. 2.4-inch TFT color screen, standard coaching function, feedback function, charging function, cruise control function, out-of-control protection function, brand new joystick assembly, equipped with 4 ball bearings, high-precision potentiometer.
2. The new 2.4G frequency hopping technology with independent intellectual property rights has strong anti-interference and stable performance. The main control chip adopts the domestic *32-bit ARM core microcontroller. The 2.4G module with PA amplifier can reach 300m on the ground and 800m in the air.
3. The simple and comprehensive UI interface, the real-time parameters of each channel and the channel definition are clear at a glance. Let you always grasp the dynamic information of the remote control.
4. Rich and practical parameter adjustment function, simple operation and easy to use, can set the Chinese and English operation interface, and basically meet the functions you need.
5. The newly designed joystick assembly, with 4 ball bearings as standard, and a potentiometer with a lifespan of 1 million times, has a smooth operation feel, accurate pointing, and no empty travel.
6. The throttle trigger spring strength can be adjusted, and the trigger opening size can also be adjusted. A good control, not only the software is important, but also the basic hardware is more important.
7. The standard receiver * has a feedback function, which can feedback the battery voltage and receiver signal, and is equipped with a feedback signal line with a plug. There are many factory receiver models, and you can also choose according to your personal needs.

Note: The remote control distance is for reference only, actual use will vary according to different environments.

Package included:

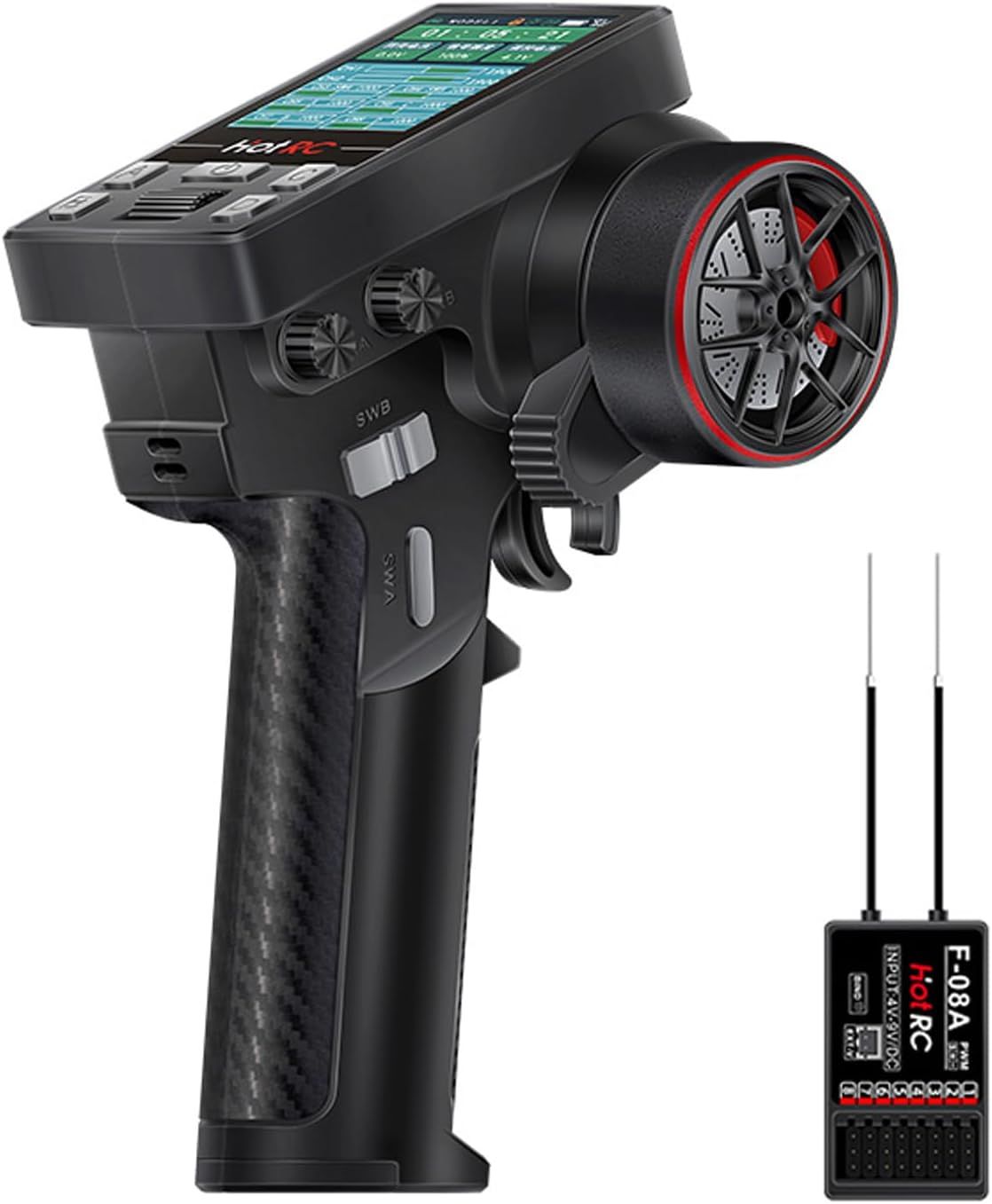

1X HOTRC CT-8B transmitter
1X F-08A receiver
1X data cable
1X packaging box
1X voltage return line
1X instruction manual

Require: 1X 3.7v 18650 battery
