Efficient cooling system
The frameless fan design is a patented technology.
The rapid transmission of internal heat to the
integrated housing radiator are made up of high
airflow from the side of the fan and a copper thermal
conduction sink on the internal power plate. These
are built into high-reliability thermal systems to
ensure that it is always in good thermal condition.

1/8thBrushless System Turbo Technology
The current brushless system is best paired with the EzRun 4278/4268SD G2 to achieve the maximum performance.
The turbo parameter is adjustable from up to 32 degrees and the speed is significantly increased by up to 25%.

Capacitor Thermal Protection
Capacitor thermal protection implemented by the ESC will
irreversible damage to the ESC due to overload.

Super Internal BEC
The built-in switch mode BEC with a maximum output of 15A
and voltage adjustable from 6V to 8.4V (step:0.1V) allows
the use of various standard servos, high voltage servos.

Built-in Big Capacitor
The ESC has three built-in 680uF capacitors, which increases
the performance by 74% (870uF) compared to the MAX8 ESC.
The ultra-large capacitors built onto the ESC also ensures
users do not need to install external capacitors on their vehicles.

Real-time data & data logging function,
easy to get the power running status.
After connecting the OTA module box, turn on real-time data recording
function to access the operating status.

New sensored cable interface

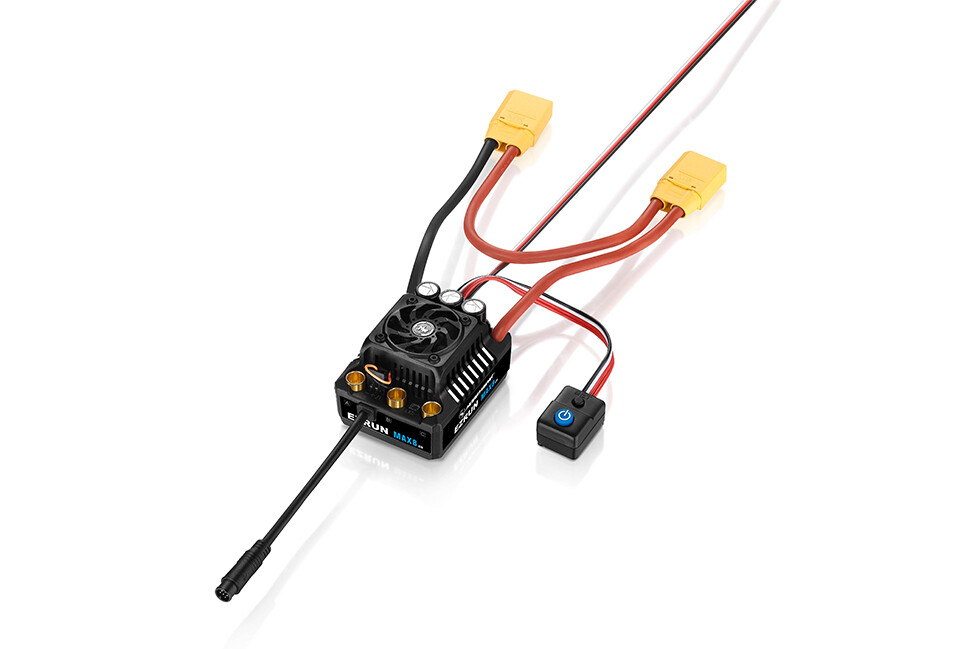

The Max8 G2 ESC is equipped with a new type of sensored cable interface.
It is high recommended to use the motors from Hobbywing as the waterproof protection level is at the highest level (IP67).

Features:
