INJORA 030 050 Brushed Motor 66T 88T for 1:24 RC Crawler Axial SCX24 Upgrade Parts
Notes:

• 050 motors require a different mounting plate with 2 extra holes.
• 050 motors are longer than stock motor, so one of the battery tray posts needs to be cut off to fit.
• Don't care how many T the motor is, we use stronger magnets and rotors, so the torque is increased a lot!

Suit for: Upgrade motor parts for Axial SCX24
Features:

• High quality magnets and rotors
• Tuned for Rock Climbing

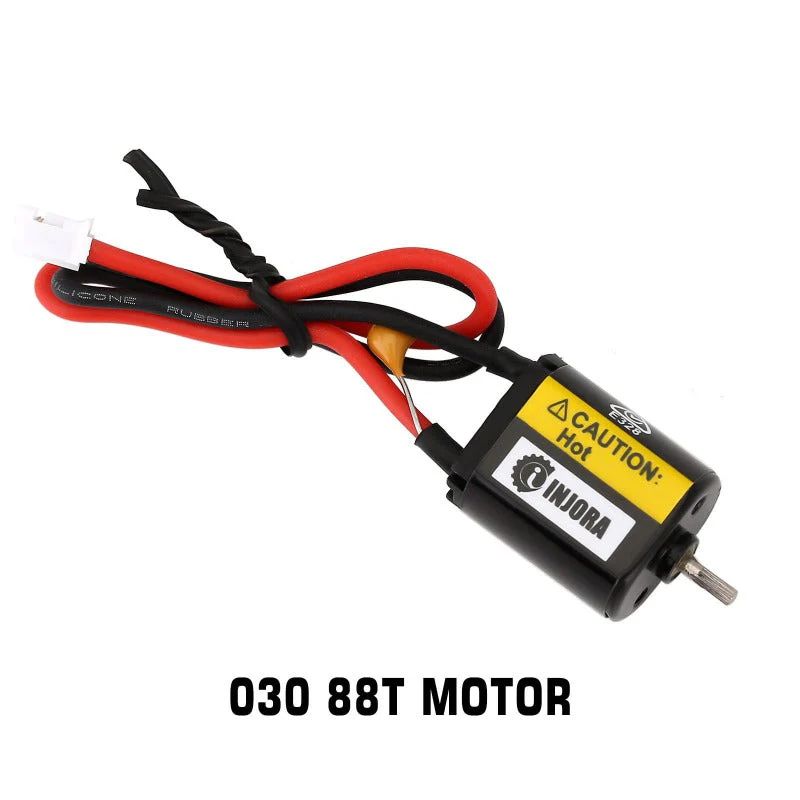

030 88T Motor Specifications:

• Size: the same as the stock motor
• Turn: 88T
• Weight: 12g
• Rated Voltage: 7.4V
• Total length: 20mm / 0.79in
• Output Shaft Length: 5.1mm / 0.02in
• Output Shaft OD: 1.5mm / 0.06in

050 66T Motor II (Red) Specifications:

• Size: longer than stock motor
• Turn: 66T
• Weight: 19g
• Rated Voltage: 7.4V
• Total length: 28.5mm / 1.12in
• Output Shaft Length: 4.9mm / 0.19in
• Output Shaft OD: 1.5mm / 0.06in

050 50T Pro Motor (Purple) Specifications:

• Size: longer than stock motor
• Turn: 50T
• Weight: 22g
• Rated Voltage: 7.4V
• Total Length: 28.5mm / 1.12in
• Output Shaft Length: 4.9mm / 0.19in
• Output Shaft OD: 1.5mm / 0.06in
• At No Load：Speed: 25500 rpm, Current: 0.36 A
• Lastest upgrade version, high torque strong magnet, provide increased power and torque.

What are the 050 motor upgrades:
1. The motor shaft is shorter than before to ensure it doesn't touch the transmission cover.
2. After testing, we have adjusted the motor speed to make the motor more compatible with the SCX24
3. The upgraded material makes the motor perform better
4. Heat dissipation has been improved, extending the life of the motor.
