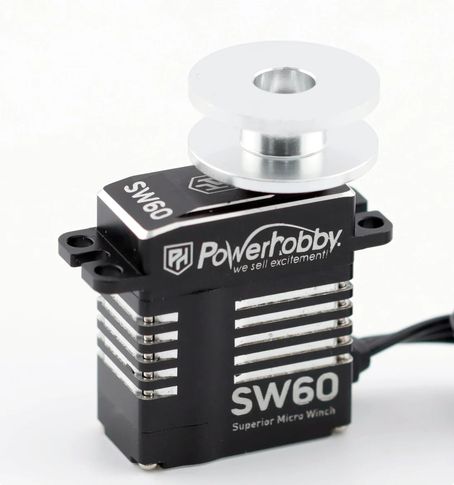

The Powerhobby SW60 is a high-torque micro winch servo designed for compatible 1/18 and 1/24-scale RC crawlers. Its compact size provides strong pulling power while requiring less mounting space than a standard-size winch servo.

The SW60 features a custom oversized brushless motor, heavy-duty stainless-steel gears, dual ball bearings, and an aluminum case for dependable operation under demanding crawler conditions. Its IP65 water-resistant construction provides added protection against dust, splashes, and damp trail conditions.

Supporting 4.8V to 8.4V operation, the SW60 produces up to 205 oz-in of torque at 8.4V. The included aluminum winch spool, line, and scale recovery hook provide the main components needed for a custom micro crawler winch installation.

Features

• High-torque micro winch servo
• Designed for compatible 1/18 and 1/24-scale crawlers
• Custom oversized brushless motor
• Heavy-duty stainless-steel gears
• CNC aluminum servo case
• Dual ball-bearing support
• IP65 water-resistant construction
• High-voltage 4.8V–8.4V operating range
• Standard 25-tooth output spline
• Up to 205 oz-in of torque
• Aluminum winch spool
• Scale recovery hook and winch line included

Includes

• 1 Powerhobby SW60 Micro Winch Servo
• 1 Aluminum Winch Spool
• 1 Winch Line
• 1 Scale Recovery Hook
• 1 Aluminum Servo Horn
• Mounting Hardware

Specifications

• SKU: PHB7500 + PHB5900
• Barcode: 69038948972
• Servo Type: Micro Winch Servo
• Operating Voltage: 4.8V–8.4V
• Speed at 4.8V: 0.093 sec/60°
• Speed at 6.0V: 0.075 sec/60°
• Speed at 7.4V: 0.062 sec/60°
• Speed at 8.4V: 0.059 sec/60°
• Torque at 4.8V: 9.0 kg-cm / 125 oz-in
• Torque at 6.0V: 10.9 kg-cm / 151 oz-in
• Torque at 7.4V: 12.8 kg-cm / 177 oz-in
• Torque at 8.4V: 14.8 kg-cm / 205 oz-in
• Motor Type: Brushless
• Gear Material: Stainless Steel
• Bearings: Dual Ball Bearing
• Case Material: Aluminum
• Output Spline: 25T
• Water Resistance: IP65
• Dimensions: 23 × 12.6 × 27mm
• Connector: JR
• Wire: 26AWG
• Wire Length: 180mm
